All OX1, OX1-PRO and FIP-500 handheld units

Procedure to update your OX1, OX1-PRO and FIP-500 through FastReporter 3

1. Launch FastReporter 3 (version 3.11 or above).

Note: To get the latest version of FastReporter 3, please visit the download software page of EXFO.com.

2. Connect your unit to the PC with the appropriate USB cable, and then power it on

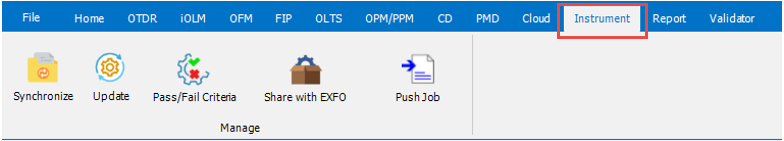

3. In the FastReporter application, click "Instrument" menu.

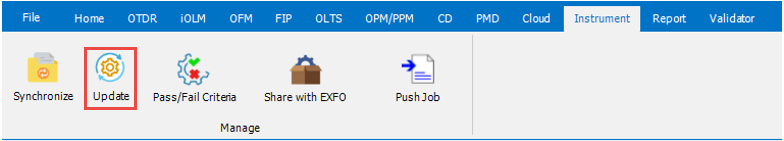

4. In the submenu, click "Update".

5. FastReporter will scan for connected instruments.

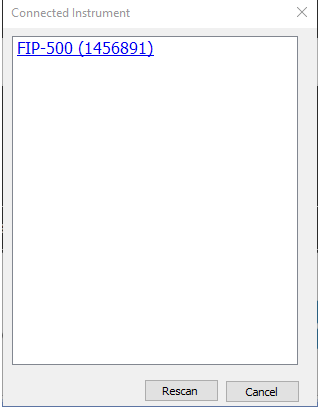

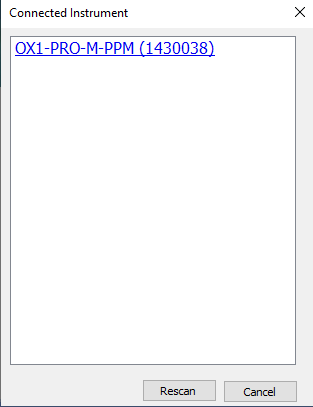

6. Click on the instrument you want to update.

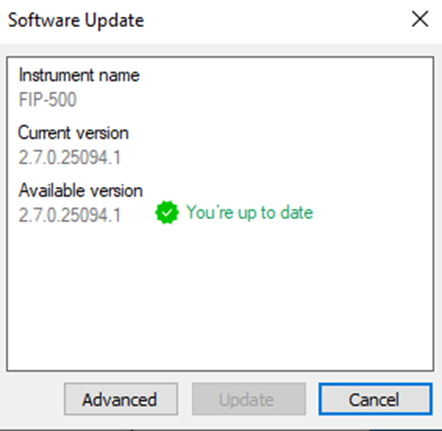

7. The system will inform you whether an update is available.

8. Click Update to complete the procedure
